Technical Information

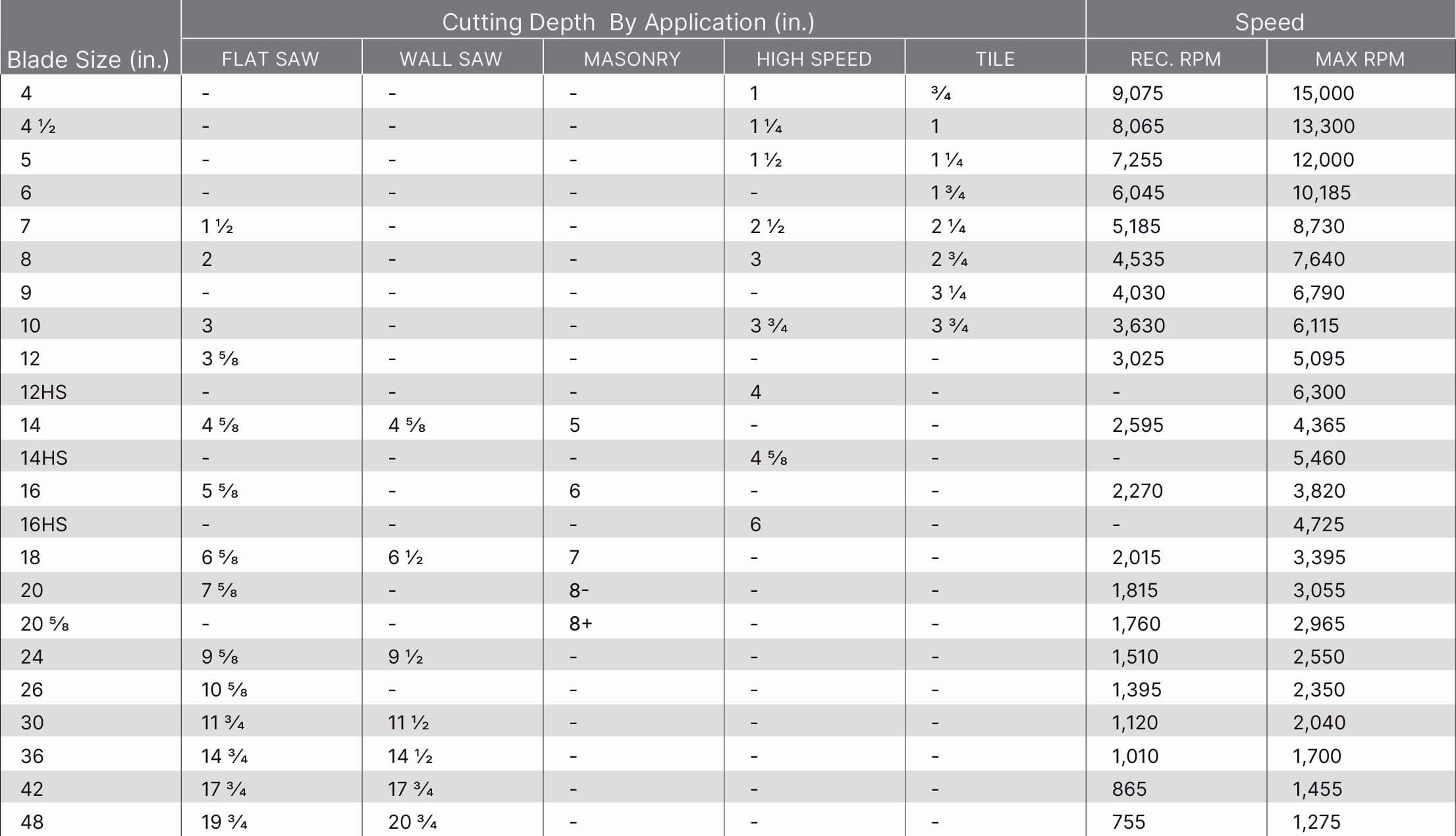

Cutting Depth & Speed

The actual cutting depth may vary depending on a number of factors, including the exact blade diameter, the exact flange diameter, saw components, etc.

Warning: Operating at greater than the max RPM can cause blade damage, which may cause injury.

Rec. - Recommended HS - High Speed Diamond Blades

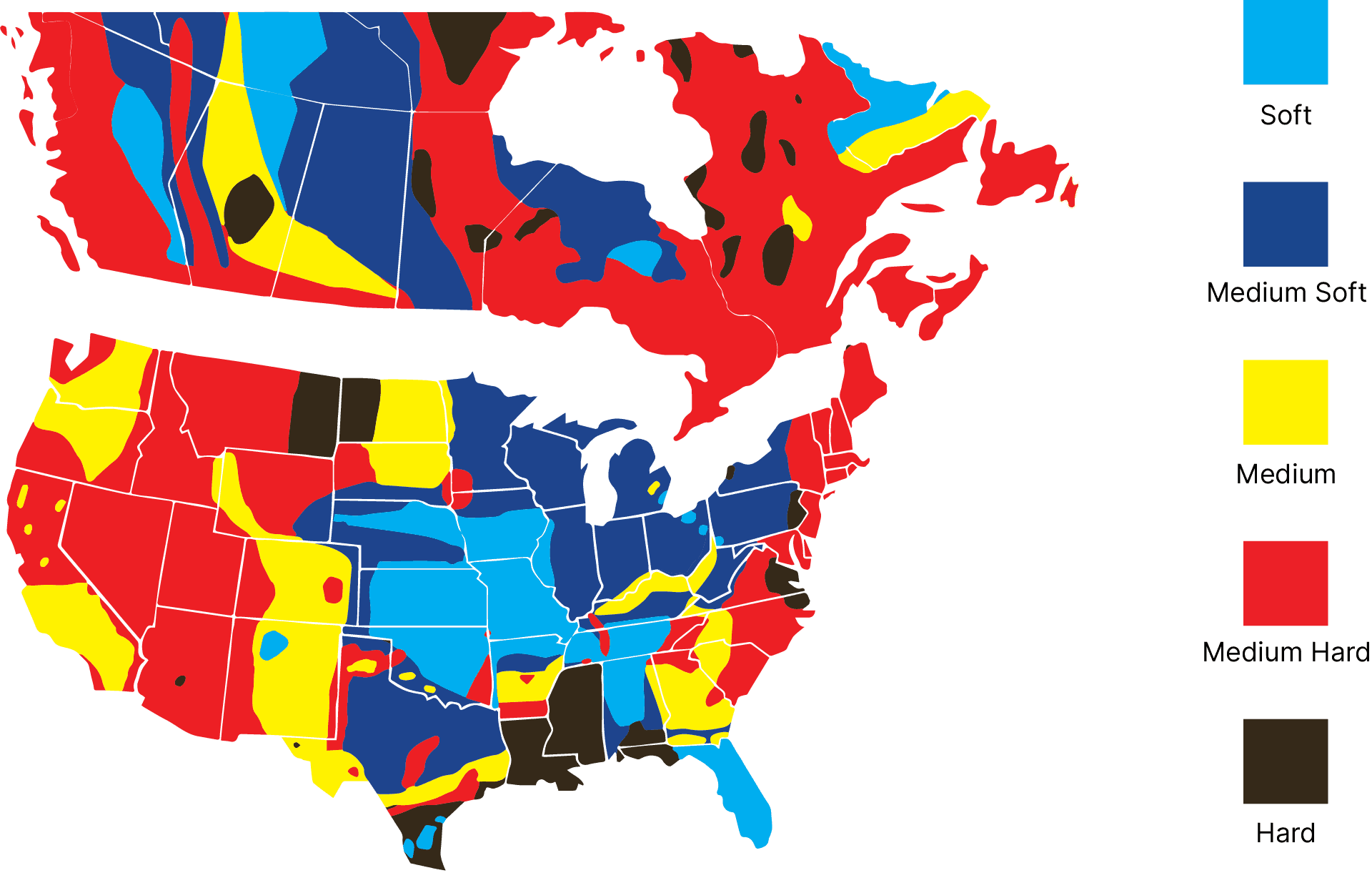

Aggregate Map

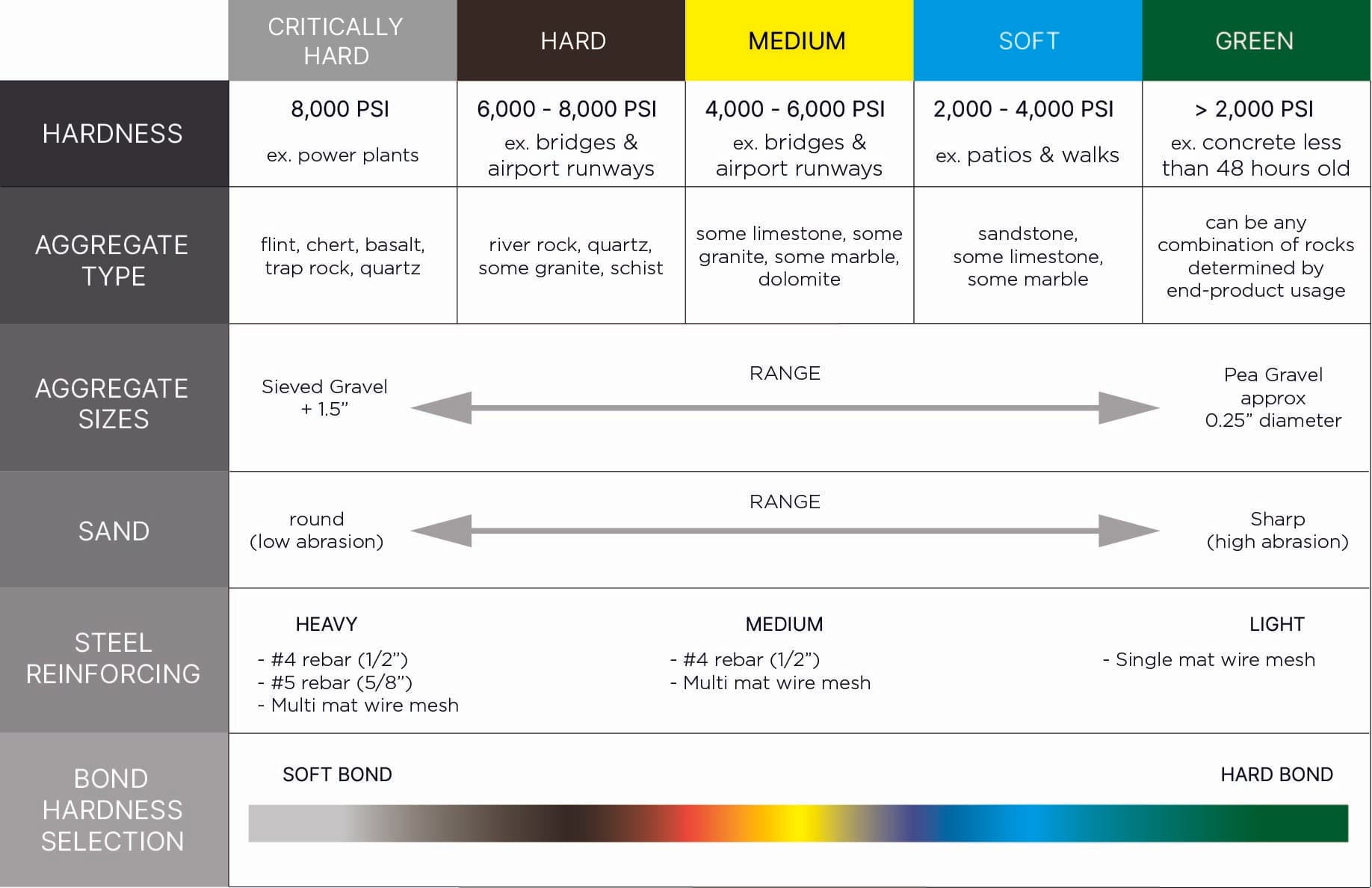

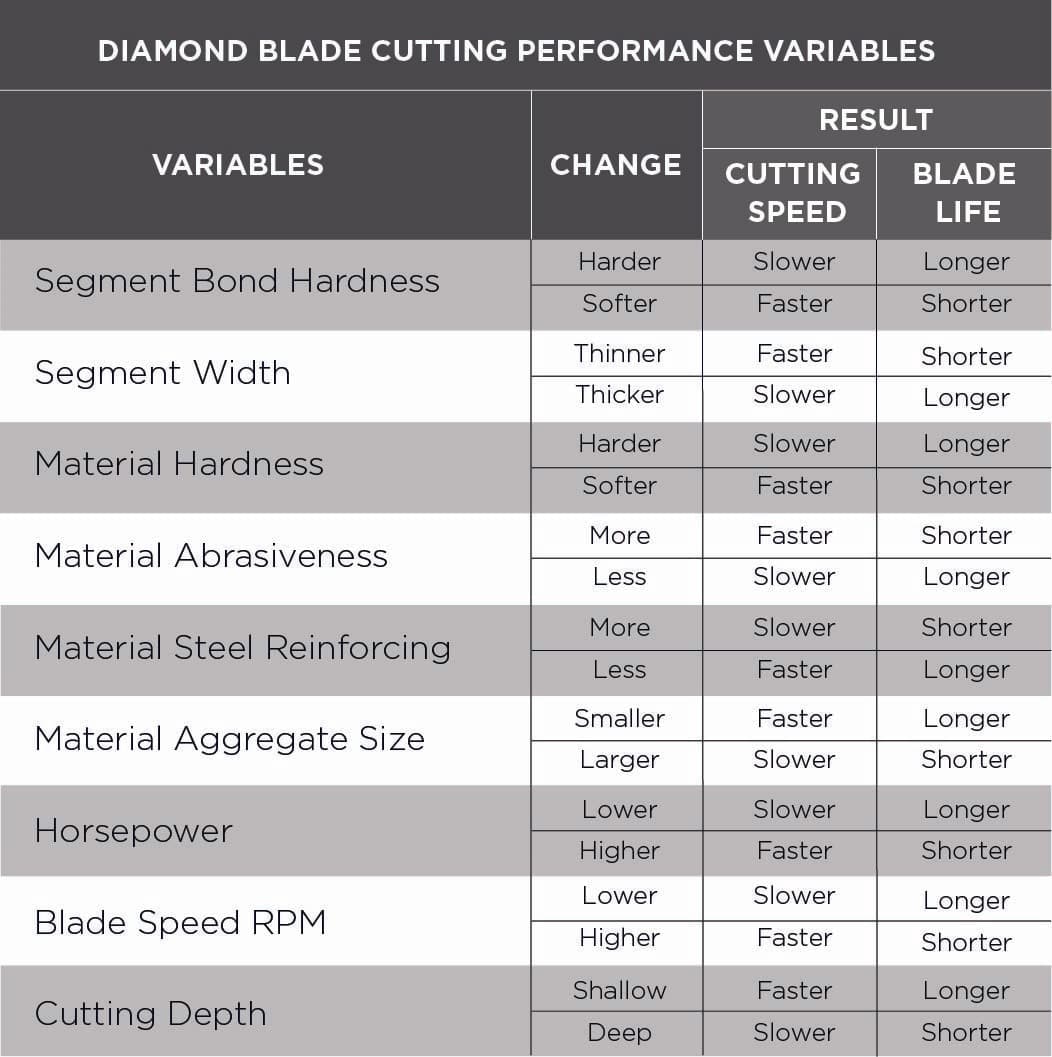

How to choose a diamond blade?

1. What is the material?
2. How hard is the material?
3. Wet or Dry?
4. What is the horsepower of the saw?
5. What blade diameter am I using?

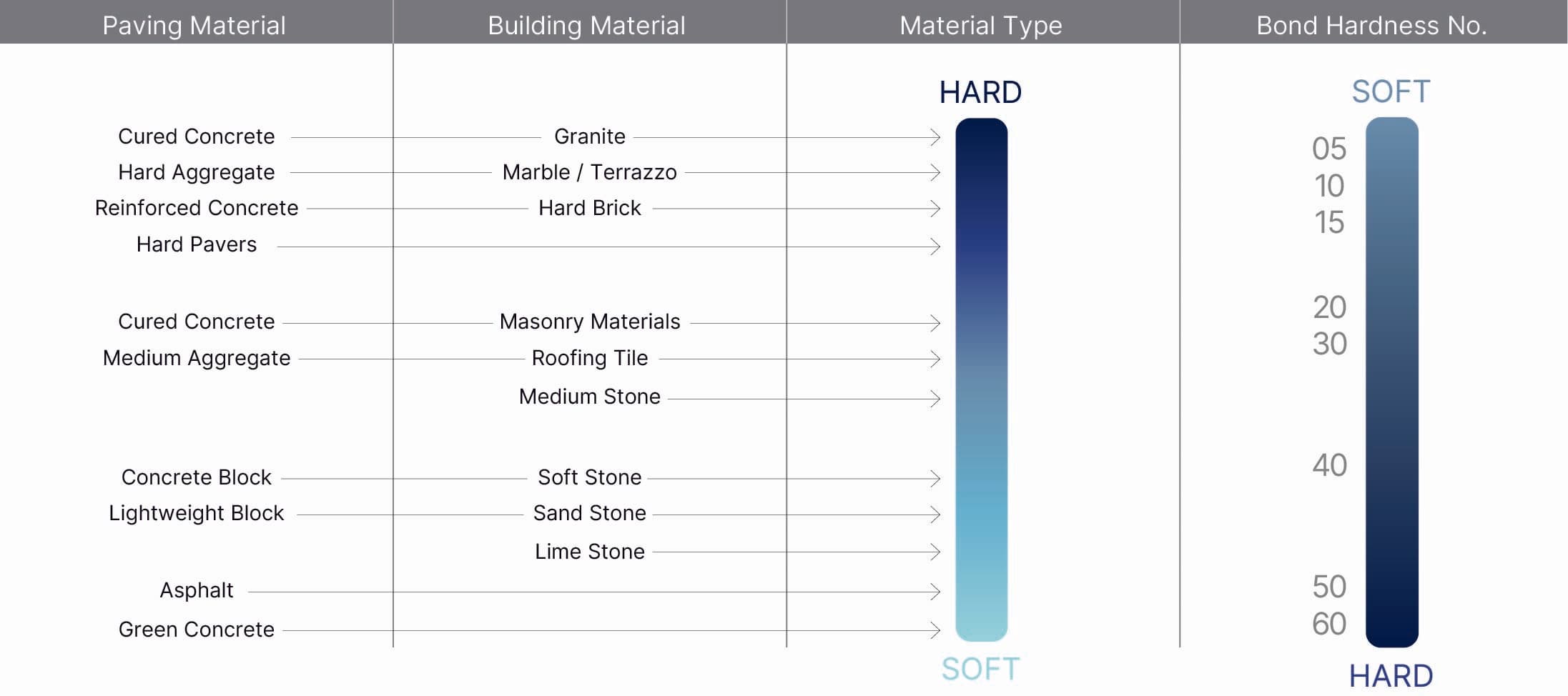

Material Application Guide
